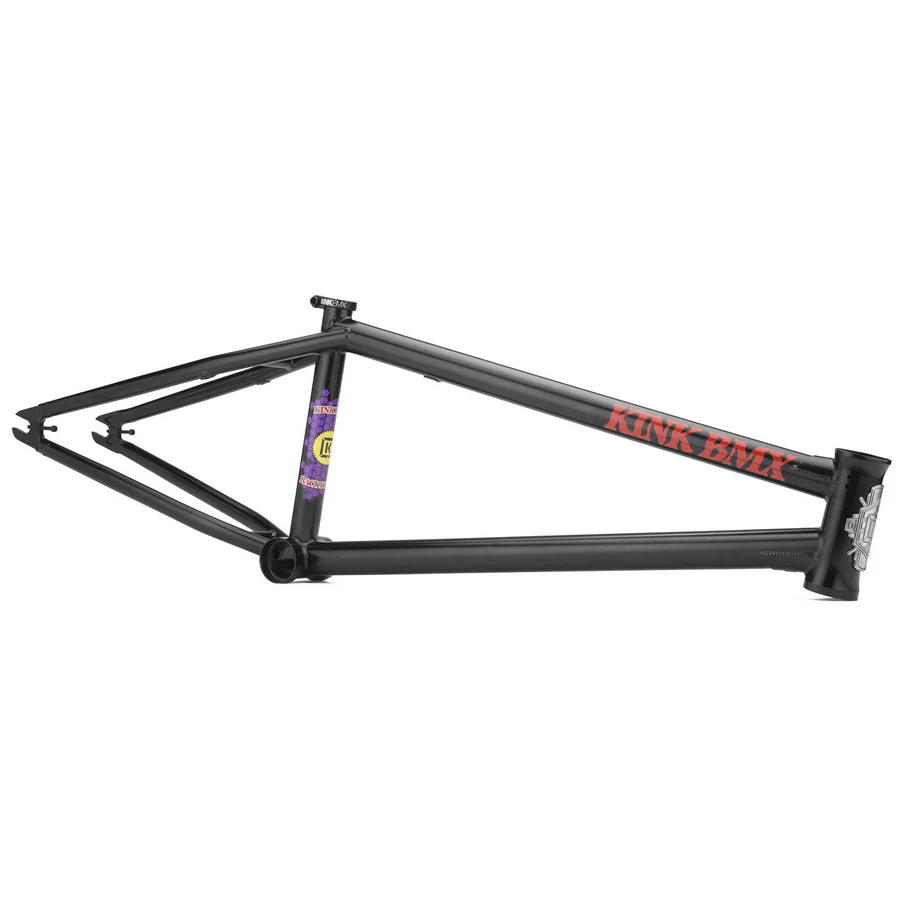

Kink Backwoods Frame

The Kink Backwoods frame was designed with the BMX trails rider in mind but is very capable of taking on the streets or ramps. The geometry of the Backwoods frame is a little more classic by today's BMX frame standards using a 74.5 degree headtube angle and a 13.5" rear end.

    Geometry

    Toptube Sizes 20.75”, 21”, 21.25”, 21.5”
    Chainstay Length 13.5" Slammed
    Bottom Bracket Height 11.6"
    Standover Height 9"
    Headtube Angle 74.5°
    Seattube Angle 71°
    Headtube Height 4.6"

    Tech Spec

    Material 100% Seamless Sanko 4130 Chromoly Tubing
    Headtube Integrated Campy Spec
    Dropouts Investment Cast with Integrated Chain Tensioners
    Bottom Bracket Internally and Externally Machined Mid Size BB
    Braking Removable Through-Bolt Brake Mount System
    Particulars Toptube and Downtube Gussets
    Wide Stays for Big Tire Clearance
    Includes Kink Master Clamp Seat Clamp
    Tapered Seatstay and Chainstay Tubes
    Simple Straight Seatstay and Chainstay Bridges
    K-Brick Headtube Badge
    Weight 4lb 15oz (20.75")


    Select Color
    Select Size
    From $132.98

    Original: $379.95

    -65%
    Kink Backwoods Frame—

    $379.95

    $132.98

    Product Information

    Shipping & Returns

    Description

    The Kink Backwoods frame was designed with the BMX trails rider in mind but is very capable of taking on the streets or ramps. The geometry of the Backwoods frame is a little more classic by today's BMX frame standards using a 74.5 degree headtube angle and a 13.5" rear end.

      Geometry

      Toptube Sizes 20.75”, 21”, 21.25”, 21.5”
      Chainstay Length 13.5" Slammed
      Bottom Bracket Height 11.6"
      Standover Height 9"
      Headtube Angle 74.5°
      Seattube Angle 71°
      Headtube Height 4.6"

      Tech Spec

      Material 100% Seamless Sanko 4130 Chromoly Tubing
      Headtube Integrated Campy Spec
      Dropouts Investment Cast with Integrated Chain Tensioners
      Bottom Bracket Internally and Externally Machined Mid Size BB
      Braking Removable Through-Bolt Brake Mount System
      Particulars Toptube and Downtube Gussets
      Wide Stays for Big Tire Clearance
      Includes Kink Master Clamp Seat Clamp
      Tapered Seatstay and Chainstay Tubes
      Simple Straight Seatstay and Chainstay Bridges
      K-Brick Headtube Badge
      Weight 4lb 15oz (20.75")
