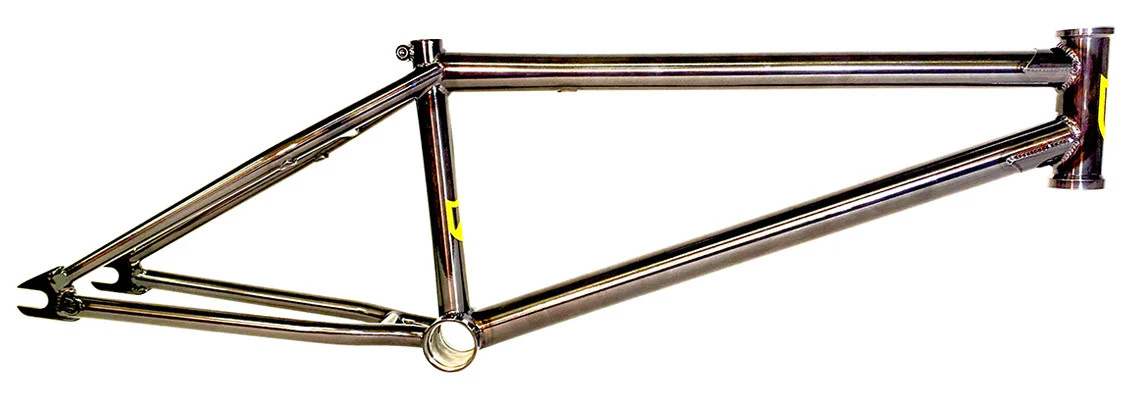

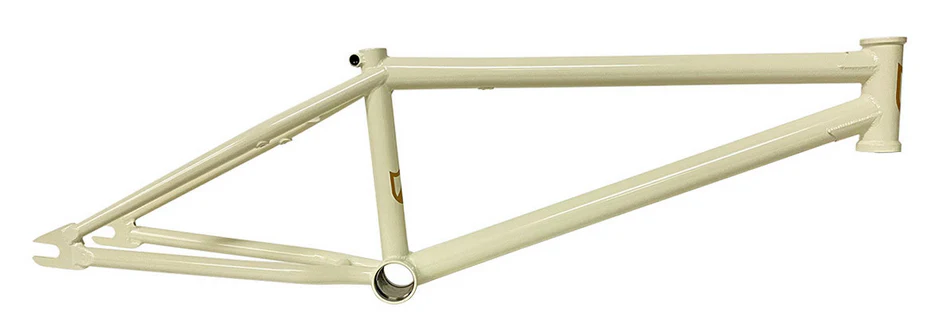

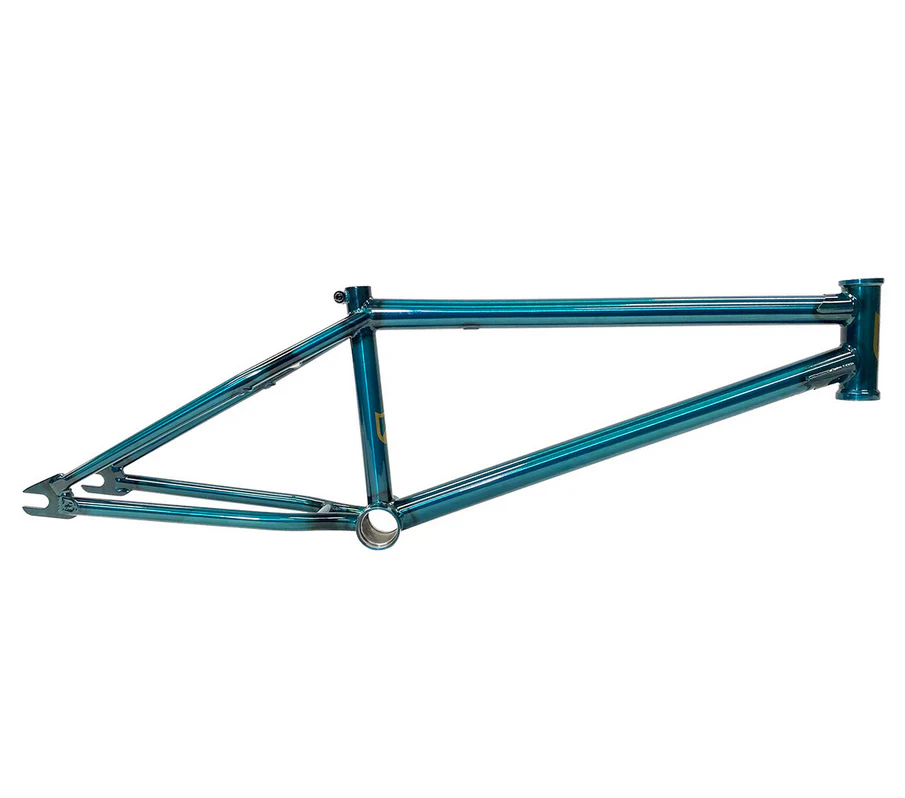

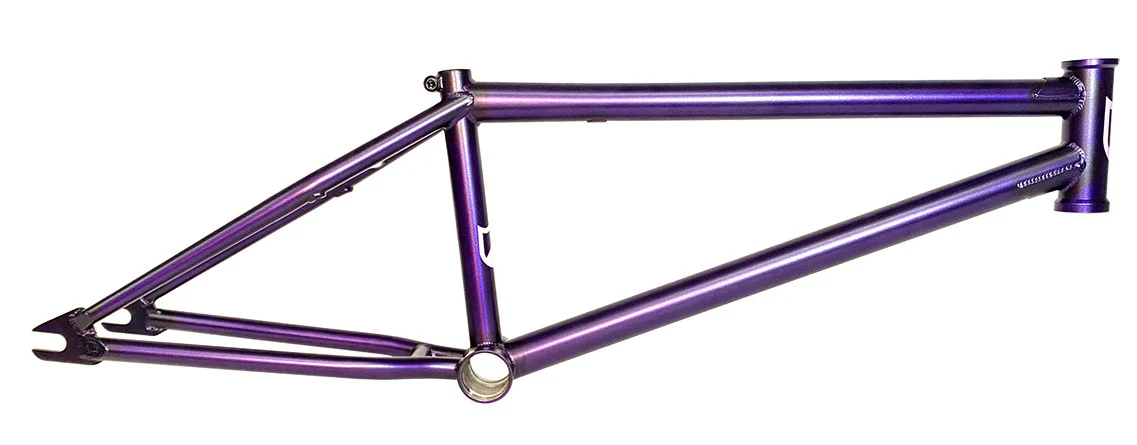

S&M ATF XL Frame
The S&M ATF XL Frame looks much like the normal ATF and is built to be used for all types of BMX riding but built for the taller riders. ATF could actually stand for "All-Terrain Frame"
The XL version of the ATF Frame includes a 5" Headtube and a 9" standover height.
Made from 100% heat treated chromoly in the USA by actual BMX riders.
| TOP TUBE LENGTHS | 21", 21.25",21.5", 22" Â |
 |
| REAR END LENGTH | 13.4" | |
| HEAD TUBE ANGLE | 75° | |
| STANDOVER HEIGHT | 9" | |
| B.B. HEIGHT | 11.7" | |
| SEAT TUBE ANGLE | 71° | |
| HEAD TUBE | 5" Integrated Campy Style | |
| B.B. STYLE | Mid | |
| BRAKE MOUNTS | Thread-On (sold separately) | |
| DROPOUTS | 14mm | |
| SEAT POST SIZE | 1" / 25.4mm | |
| WEIGHT | 4.75 lbs. / 2.15 kgs |
Select Color
Select Top Tube Length
From $181.98
Original: $519.95
-65%S&M ATF XL Frame—
$519.95
$181.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The S&M ATF XL Frame looks much like the normal ATF and is built to be used for all types of BMX riding but built for the taller riders. ATF could actually stand for "All-Terrain Frame"
The XL version of the ATF Frame includes a 5" Headtube and a 9" standover height.
Made from 100% heat treated chromoly in the USA by actual BMX riders.
| TOP TUBE LENGTHS | 21", 21.25",21.5", 22" Â |
 |
| REAR END LENGTH | 13.4" | |
| HEAD TUBE ANGLE | 75° | |
| STANDOVER HEIGHT | 9" | |
| B.B. HEIGHT | 11.7" | |
| SEAT TUBE ANGLE | 71° | |
| HEAD TUBE | 5" Integrated Campy Style | |
| B.B. STYLE | Mid | |
| BRAKE MOUNTS | Thread-On (sold separately) | |
| DROPOUTS | 14mm | |
| SEAT POST SIZE | 1" / 25.4mm | |
| WEIGHT | 4.75 lbs. / 2.15 kgs |
