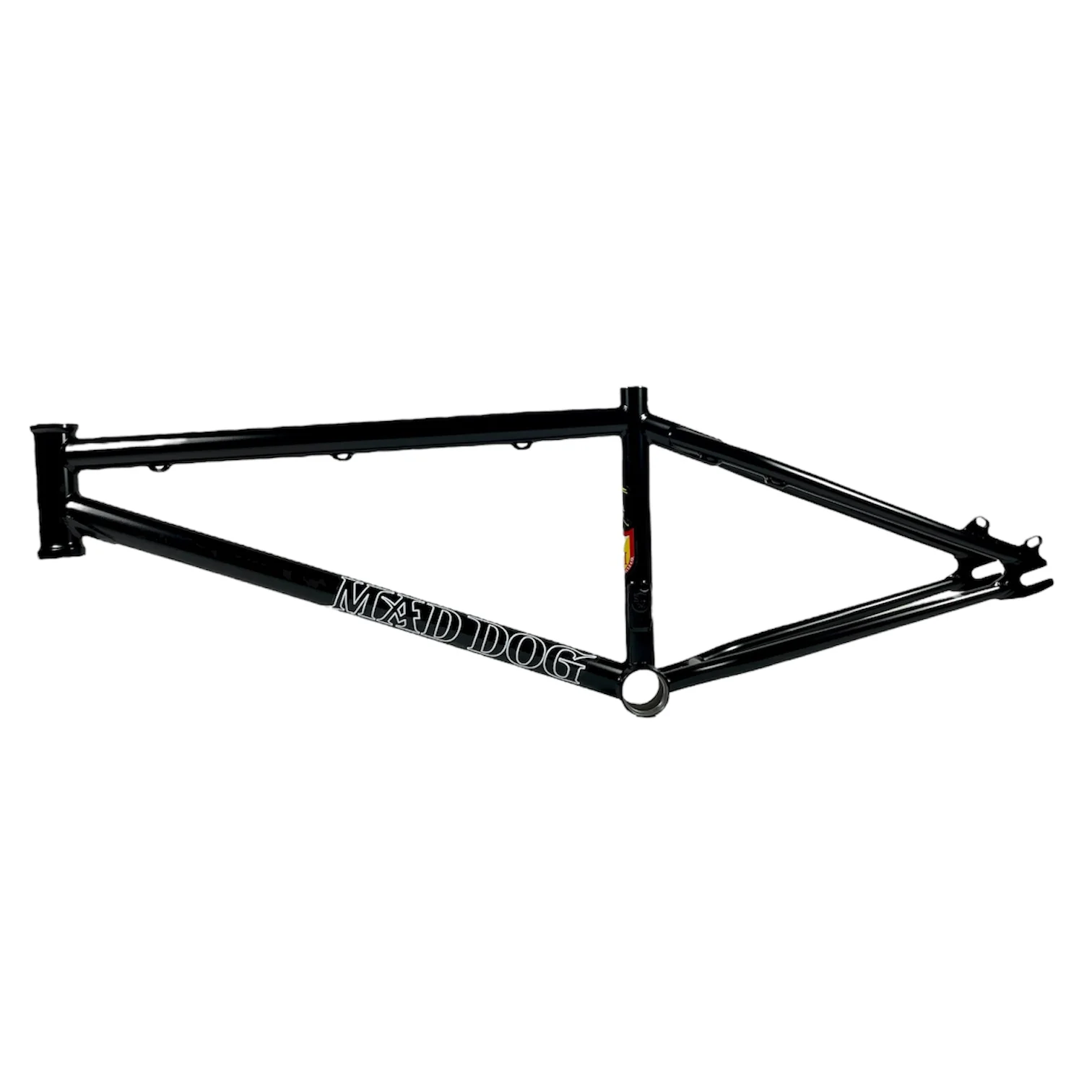

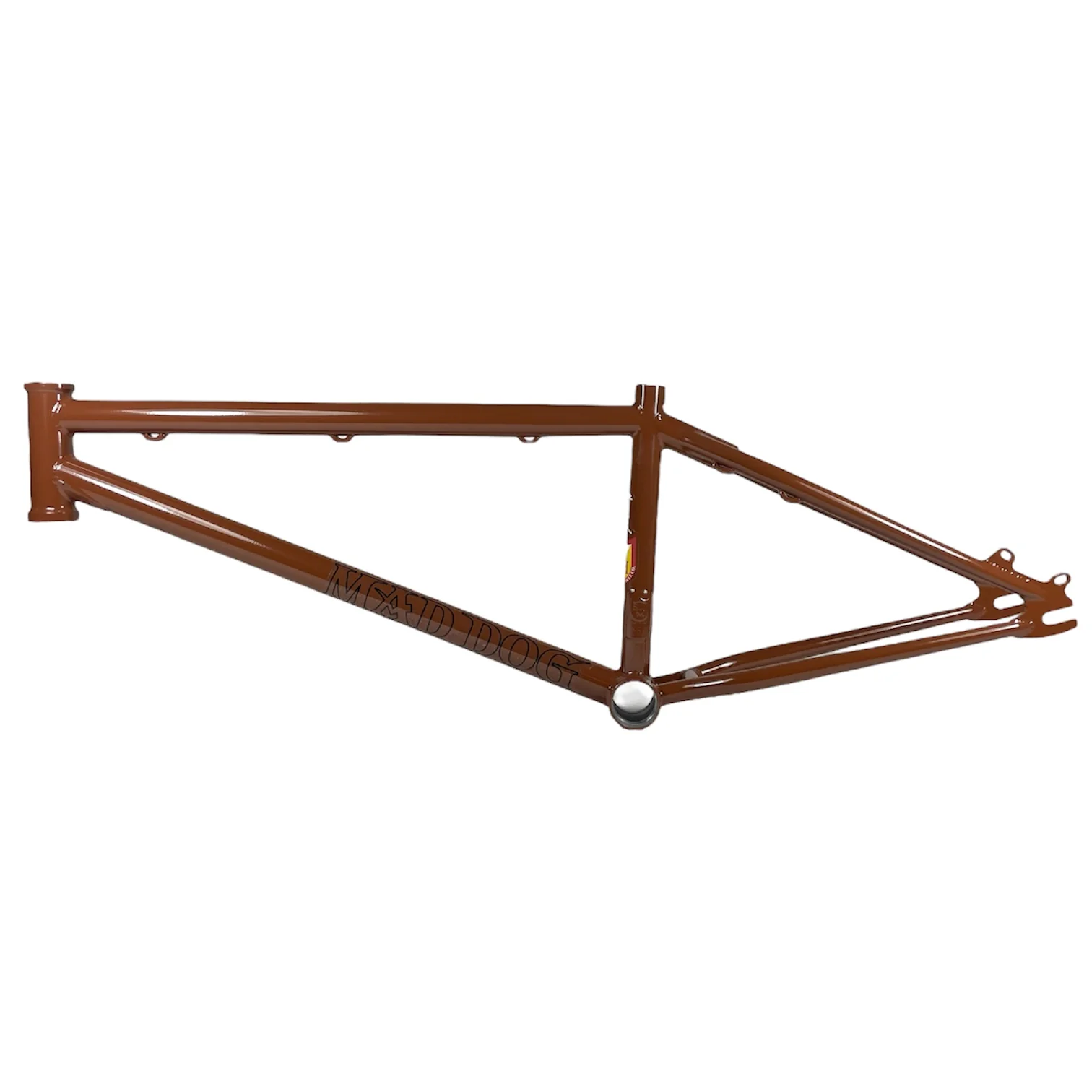

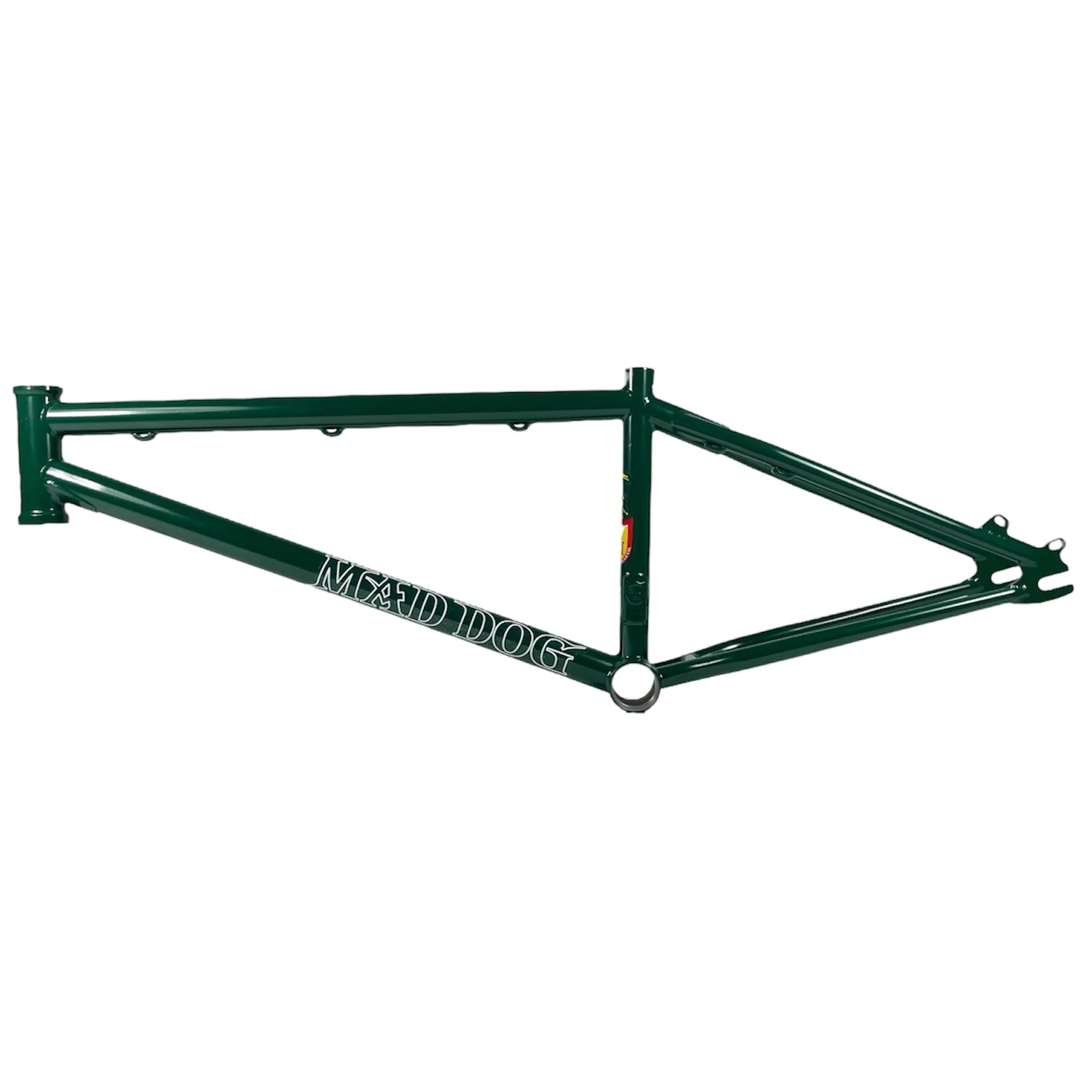

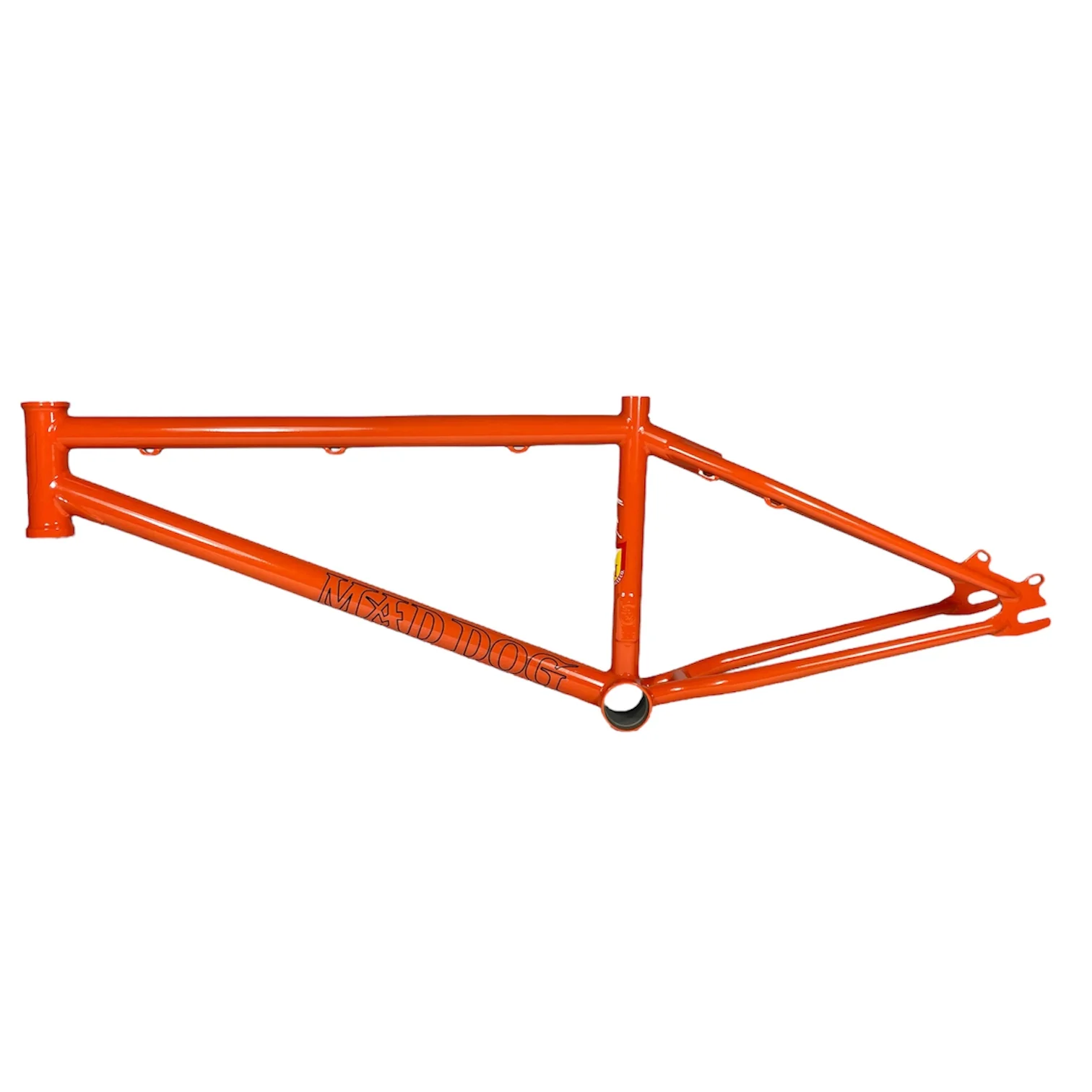

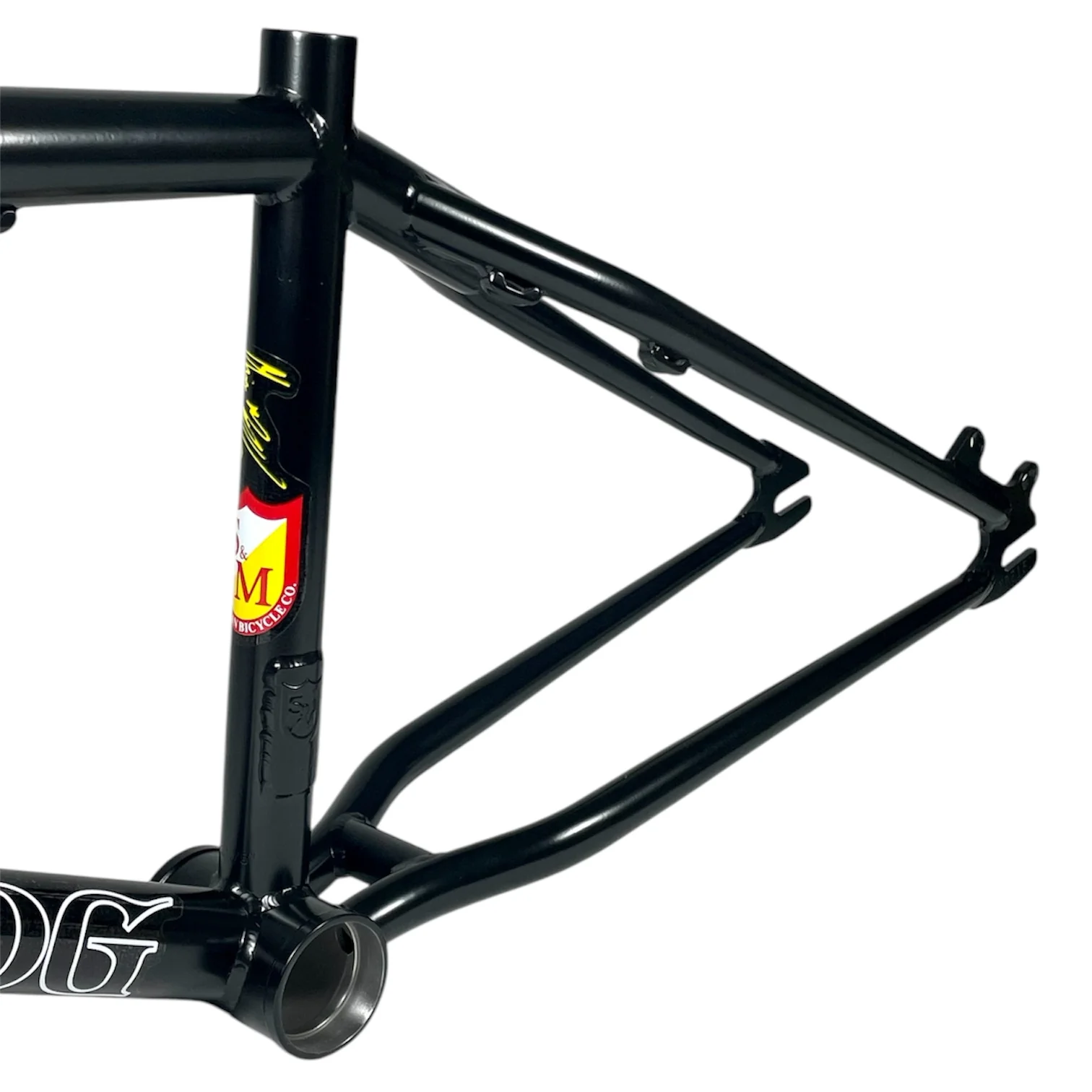

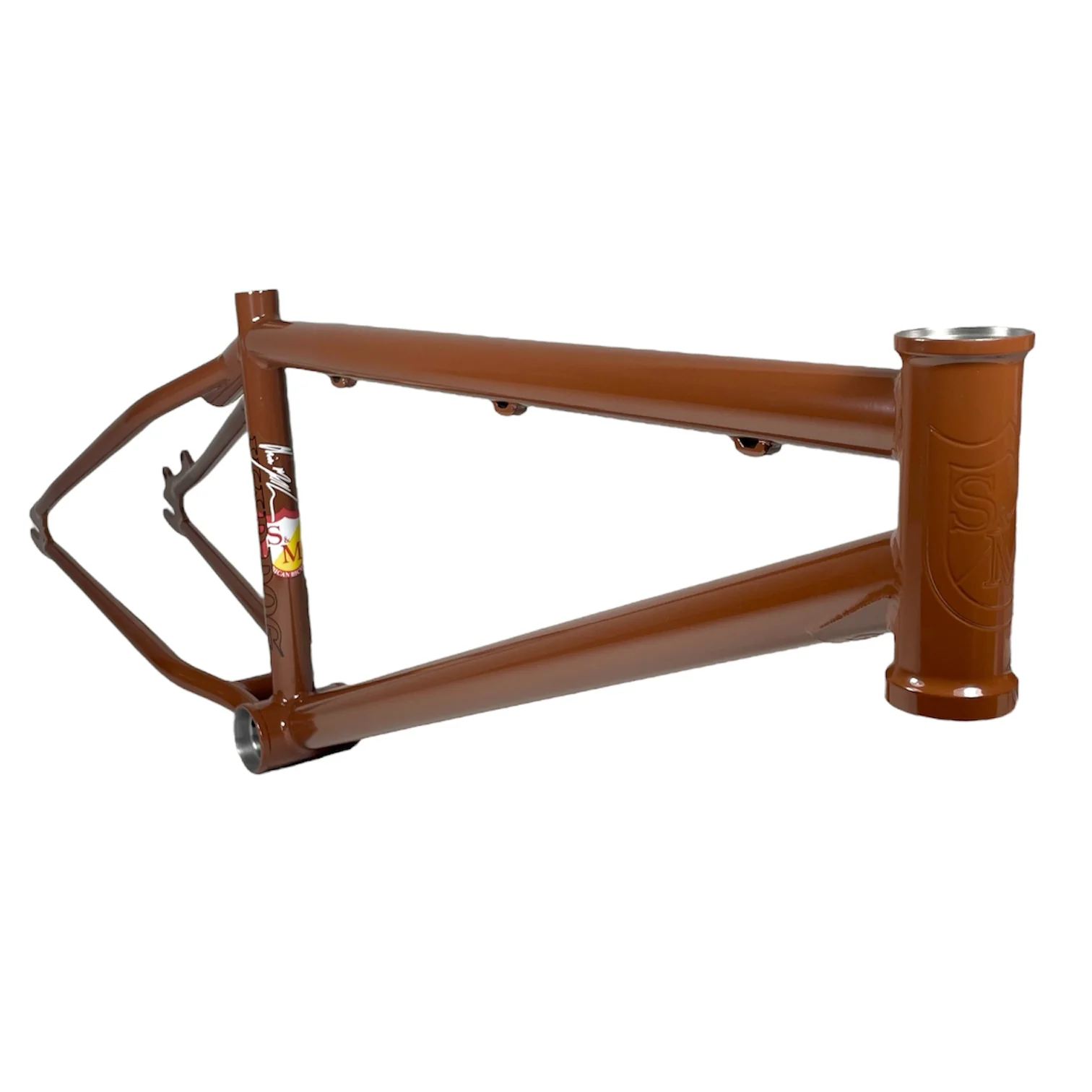

S&M Mad Dog Frame For 22" Wheels

The S&M Mad Dog Frame is specifically spec'd by the man himself, Mr. Chris Moeller. The Mad Dog frame is designed to wreak havoc in the trails or at the track with its tall standover, relaxed head tube, and longer chainstays. This trail roasting machine was also blessed with a disc brake mount setup in case you ever actually wanted to slow down.

Now featured in this 22" model makes it an ideal candidate for anyone looking to get back into riding that feels a 20" is just to small yet wants to ride at an aggressive level. The 22" bikes are just big enough to where they feel more stable to ride yet not overly large to where they feel cumbersome.

Disc Brake Mounting info:

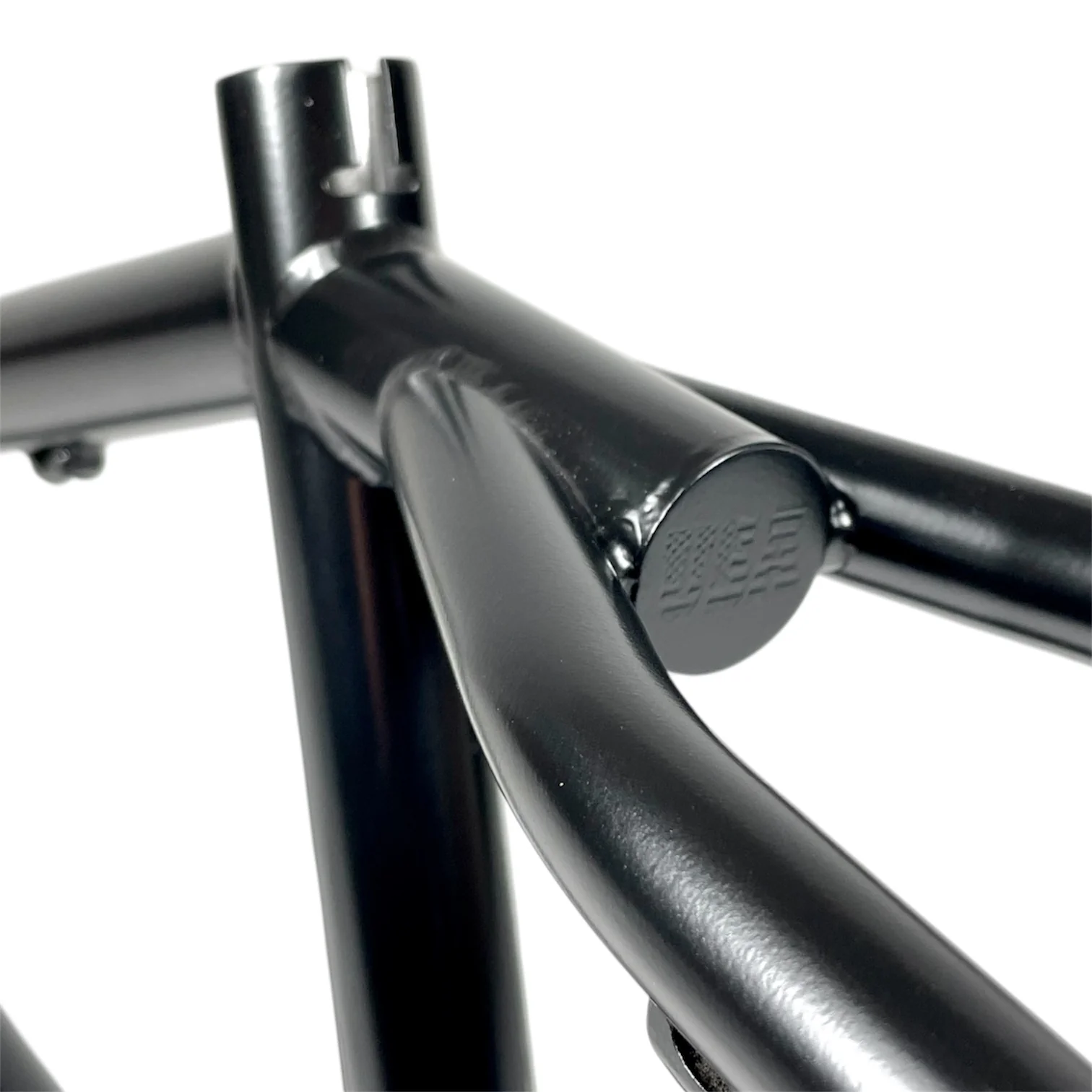

Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor (Profile hub or hub with similar narrow flange width recommended for spoke/caliper clearance)  , 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm and accepts 3/8″ axle.

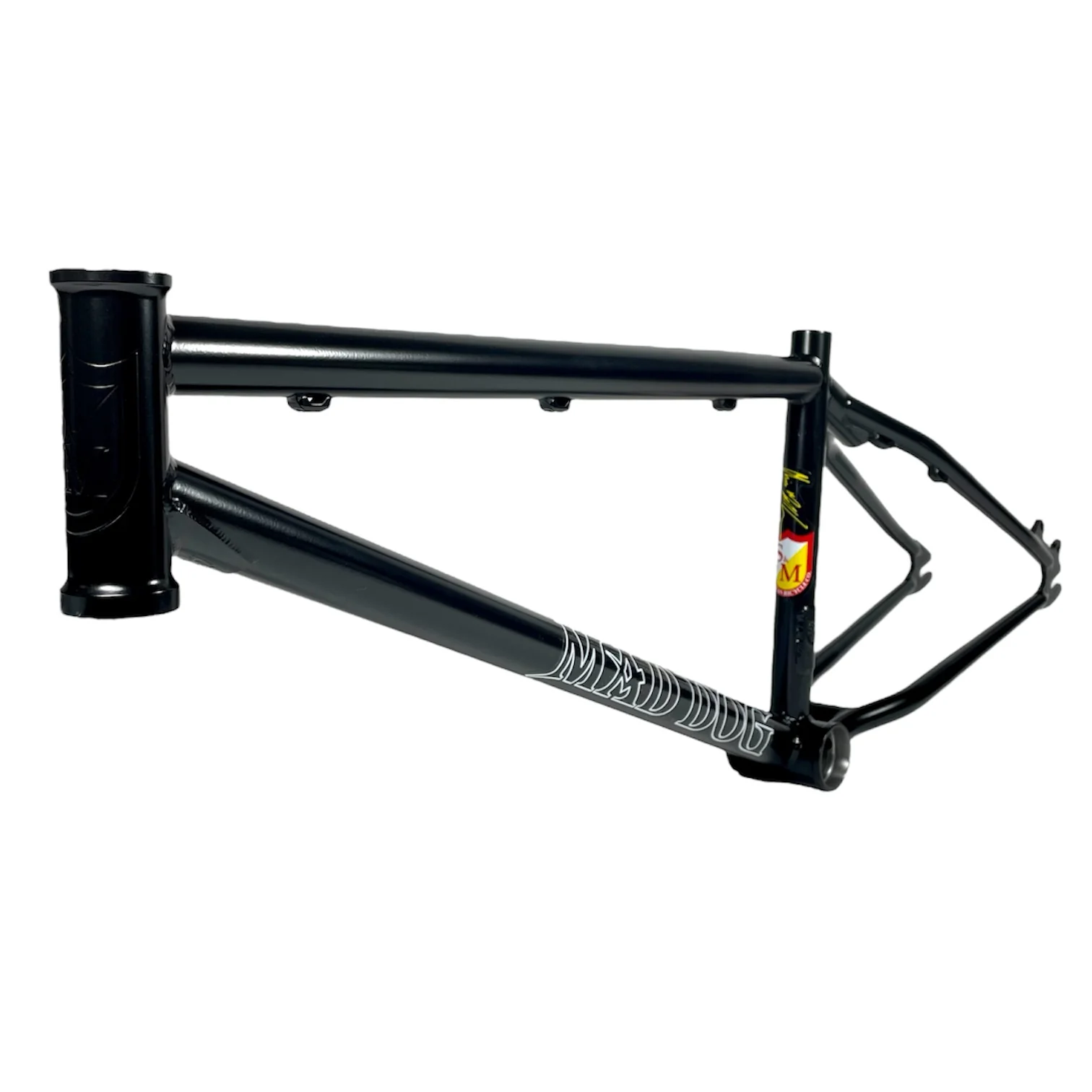

  • Engraved headtube badge

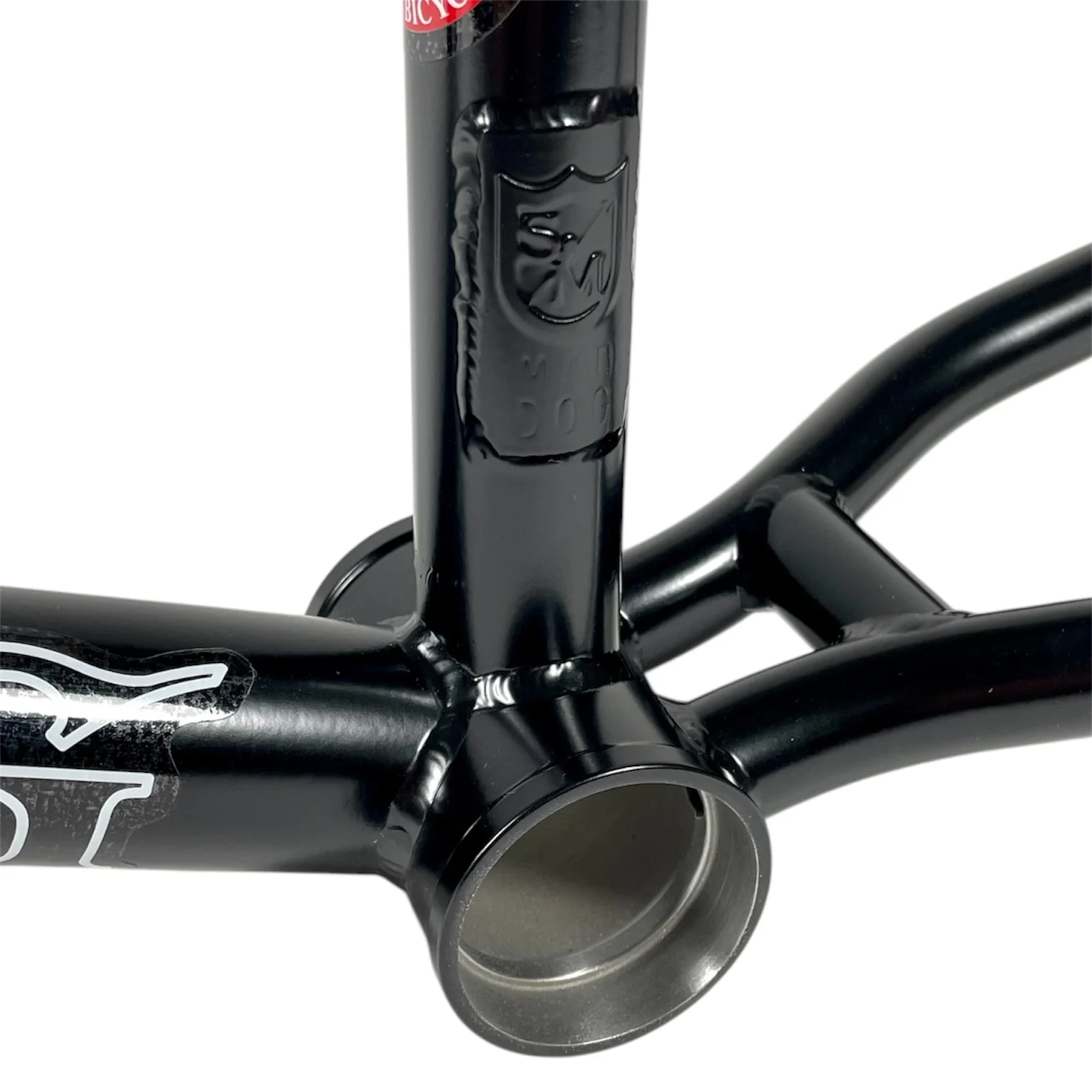

  • Engraved "87" on BB Shell
  • Hardware sold separately
  • Mid Bottom bracket
  • 3/8" Dropouts
TOP TUBE LENGTHS 21.75″, 22″, 22.25″, 22.5″
REAR END LENGTH 14.15″
HEAD TUBE ANGLE 74.25°
STANDOVER HEIGHT 10″
B.B. HEIGHT 11.8″
SEAT TUBE ANGLE 71°
HEAD TUBE 5″ Tall Integrated Campy Style
B.B. STYLE Mid
BRAKE MOUNTS Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor.
DROPOUTS 3/8″
SEAT POST SIZE 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp
WEIGHT 5.1 lbs
MAX TIRE 22X2.35″
MAX SPROCKET 36T
